163.00$
Features

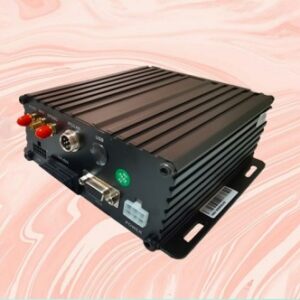

A versatile telematics device for surveillance and
online fleet management of passenger buses, school
buses, delivery trucks, etc.
High definition video channels
GPS + BDS dual positioning modules
WiFi & 3G/4G LTE telecommunication
Indicator lights showing operation status of the DVR
Description
Technical Specifications
System Linux 3.10
Video Input 4 CH AHD 1080P/720P PAL NTSC
Video Encoding
H.265/H.264 dual stream coding
candid photography
Audio 1 CH input G.711 audio stream coding
Audio/Video Output 1 CH CVBS
Storage SD(512G) x 2 = 1024G
Satellite Positioning GPS + BD2 accuracy ≤ 2.5m
Other Interfaces USB 2.0 x 1 RS485/RS232 x1
Wireless Communication 3G/4G WiFi
Indicator Lights Panel
Power platform positioning
video storage alarm
Power Input: DC9V～36V
Temperature Range -30～80℃ ( operation ) -40～85℃ ( storage )
Dimensions 140 x 118 x 35mm
