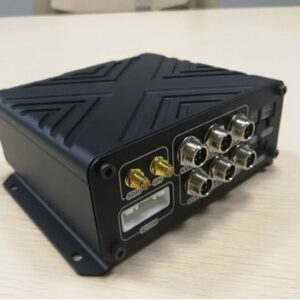

Mobile DVR with Data Encryption Model No E5S4M

Mobile DVR with Data Encryption Model No E5S4M

Mobile DVR with Data Encryption Model No E5S4M

$119.00
You save

Features:
 High definition videos
 GPS + BDS dual positioning modules
 4G and WiFi are available for your option
 Both video files and video streaming may be encrypted for protection
of your data information
 Alarms for such events as overspeeding, overtime temporary parking
and continuous driving for over 4 hours.
 Two emergency buttons are available for you to contact the online
management in case of emergency.
 Mileage calculator

Quantity Discount (%) Price
1 - 99 — $119.00
100+ — $119.00

Total

x
Category:
Report Abuse

Description

Technical Specifications

System Linux
Video Input 4 CH 1080P AHD 2.0
Video Output 2 CH: VGA + CVBS with blind spot monitoring
Video Compression H.264/H.265 high profile
Audio
Input: 4 embedded audios on cameras. You could choose only one
channel at a time for operation.
Output: 1 CH
Audio Compression G.711, G.726
Data Encryption 256bit for both video files and video streaming
Positioning Modules GPS + BD2
Storage SD x 2 ( 256G x 2 )
Wireless Communication
( optional )
3G/4G, WiFi
Interface
6-pin ethernet air connector x 1 ( LAN 10/100Mbps )
RS485 x 1 USB x 1
Power
Input: DC9V～36V
Standby: 0.2A@24V
Peak Current: 0.8A@24V
Temperature Range -30～70℃ ( operation )
Anti-vibration ≤50 m/s2 acceleration speed
Impact Acceleration 490 m/s2 11ms
Dimensions 140 x 118 x 35mm

Loading...
  • Refractory Data Memory Module QM – C Model

    Features:
     A state-of-the-art fireproof model of memory
    device for use in extremely harsh and tough
    conditions
     An embedded or peripheral refractory module
    of data memories for trains or car recording
    systems, bus monitors ( DVR ) or other security
    products protecting your data in case of
    emergency or in accidents
     FPC connector that may be connected to USB
    via an adaptor
     Storage via eMMC or SSD that can be
    converted into USB standard via an adapter
     As refractory as a flight data recorder against
    1100℃ high temperature fire
     Survivable at 100m deep water for 240 hours
     Shell made from 6mm alloy steel
     As per international standard of railway
    equipment ( on board driving data recording
    system ): IEC62625.1 2013 with related thirdparty verifications and test reports
     Size: 95 x 80 x 48 (mm)
     NWT: 1.3kg

    $998.00
  • Refrigerator Car Monitoring System

     Time alert for precooling and a full record of the temperature changes  Access real-time location data and keep track of the temperature inside refrigerated trucks  Alert the drivers whenever the refrigerated compartment door is opened or closed  The driver monitoring system ( DMS ) and ADAS enhance the security and safety […]

    $220.00
  • Car DVR with Embedded ADAS + DMS Systems Model No A5S

    Intelligent solutions for smart driving and fleet safety Smart Versatile Hybrid DVR The versatile DVR embodies multiple functions with artificial intelligence for tracking and real-time detection of your car performance. Face Identification ( Face ID ) The system captures human faces and compares them against those that have been preserved in file to determine whether […]

    $13.00
  • In-car Monitoring Dome Camera XD – C212

    Technical Specifications

    Model No   XD – C212 ( in-car monitoring )
    Imaging device 1/2.9  1M Pixel CMOS
    Pixels 720P/1080P/25fps   720P/1080P/30fps
    Video output AHD  1.0Vp-p/75Ω
    Minimum illumination 0.01Lux while IR in operation
    IR range 3 – 6 m
    SNR >50dB
    Lens   2.8mm   F2.0
    Lens angle 950 H      600V
    Electronic shutter AUTO:  1/50sec   1/60sec
    White balance AUTO
    Gamma correction 0.45
    Image coloring Color, Black and white while IR in operation
    Mirror effect Available
    Interface  4-pin air connector
    Cable length 0.5m
    Voltage DC 9 – 16V
    Current 240mA@12V
    Temperature range -300 ～ 850
    Moisture ≤95%
    IP code IP54

    Original price was: $17.00.Current price is: $15.00.
  • Refractory Car Data Memory QF-AU Model

    Features:
     A fireproof model of memory device for use in
    in extremely tough conditions
     Auxiliary data memory device connected to car
    DVRs, monitoring equipment or other security
    devices
     Air connector M12-5PIN
     Resistant to 1100℃high temperature fire
     Survivable at 100m deep water for 240 hours
     Stored data retrievable immediately after
    incidents of fire, explosion, immersion, car
    crash, etc.
     Size: 122 x 88 x 57mm
     NWT: 1kg

    $899.00
  • Front & Rear View Dual Lens Car Camera XD-C3T2

    Technical Specifications

    Model No   XD – C3T2  ( front and rear view )
    Imaging device 1/2.9  1M Pixel CMOS
    Pixels 720P/1080P/25fps    720P/1080P/30fps
    Video output AHD  1.0Vp-p/75Ω
    Minimum illumination Front view: 0.01Lux  In-car: 0lux ( IR open )

    In-car: 0Lux with IR in operation
    IR range 3 – 8 m
    SNR >50dB
    Lens   Front view: 2.8mm@F2.0

    In-car: 1.9mm@F2.0
    Lens angle Front view: 1100 H /800V

    In-car: 1500 H /1000V
    Electronic shutter AUTO:  1/50sec   1/60sec
    White balance AUTO
    Gamma correction 0.45
    Image coloring Color, Black and white while IR in operation
    Mirror effect Available
    Interface  4-pin air connector
    Cable length 0.5m
    Voltage DC 9 – 14V
    Current 300mA@12V
    Temperature range -200 ～ 800
    Moisture ≤95%
    IP code



    		 IP54

    Original price was: $35.00.Current price is: $29.00.

Product Enquiry

Related products

  • Car DVR Model No MF4HT

    Features:

    A telematics device for security and safety of passenger buses, school buses, heavy duty trucks or other road vehicles.
    High definition video channels with an IP camera
    GPS + BDS dual positioning modules
    WiFi-AP 3G/4G LTE telecommunication
    Storage via SD card and hard disk
    For surveillance, tracking and fleet management online
    when connected to our platform
    Size：162 x 153 x 52mm

    $213.00
  • In-car and Front View Dual Lens Camera Model No XD-C3T1

    Model No XD – C3T1 ( in-car and front view ) Imaging device 1/2.9 1M Pixel CMOS Pixels 1080P/25fps 7P/30fps Video output AHD 1.0Vp-p/75Ω Minimum illumination Front view: 0.01Lux In-car: 0Lux with IR in operation IR range 3 – 8 m SNR >50dB Lens Front view: 2.8mm@F2.0 In-car: 1.9mm@F2.0 Lens angle Front view: 1100H /800V […]

    $220.00
  • Car DVR Model No E5S4H

    Features

    A versatile telematics device for surveillance and
    online fleet management of passenger buses, school
    buses, delivery trucks, etc.
    High definition video channels
    GPS + BDS dual positioning modules
    WiFi & 3G/4G LTE telecommunication
    Indicator lights showing operation status of the DVR

    $163.00
  • Mobile DVR with BSD System Model No A5S – lite – 2

    Features:
     A compact model car DVR with embedded BSD system which alerts the
    driver whenever it detects pedestrians, non-motorized vehicles or other
    obstacles in the blind spot area around your vehicle
     GPS+BDS positioning & tracking
     High definition videos
     Candid photography
     BSD camera
     Sound and light alarm siren
     7’ bus monitor
     The system will transfer a signal and run into sleep mode when the
    vehicle breaks down
     Size: 160 x 140 x 48mm
     Recommended for use in such vehicles as passenger buses, heavy duty
    trucks, engineering vehicles, etc.

    $220.00
