Description
The tracking solution is designed to enhance the safety, security and
operational efficiency of muck truck fleet on the way. It enables you to access
the real-time data, alerts and reports from the fleet of muck trucks throughout
all the routes. The cameras, sensors and the fleet management software help
reduce your labor and increase your management efficiency.
Real-time detection and tracking of muck trucks on the way
Diver’s face ID and related monitoring system ( DMS )
Alerts and alarms of possible dangers and remind you of drivers’ hazardous
behavior such as fatigue, overspeed or smoking
Alert the driver when the muck bin is tilted and turned over or when
detecting a leakage of muck on the way
Whenever a muck truck is driving out of scheduled routes, an alarm will be
sent to the management platform online
-
Mobile DVR with Data Encryption Model No E5S4MFeatures:
High definition videos
GPS + BDS dual positioning modules
4G and WiFi are available for your option
Both video files and video streaming may be encrypted for protection
of your data information
Alarms for such events as overspeeding, overtime temporary parking
and continuous driving for over 4 hours.
Two emergency buttons are available for you to contact the online
management in case of emergency.
Mileage calculator$119.00 -
Front & Rear View Dual Lens Car Camera XD-C3T2Technical Specifications
Model No XD – C3T2 ( front and rear view ) Imaging device 1/2.9 1M Pixel CMOS Pixels 720P/1080P/25fps 720P/1080P/30fps Video output AHD 1.0Vp-p/75Ω Minimum illumination Front view: 0.01Lux In-car: 0lux ( IR open ) In-car: 0Lux with IR in operation
IR range 3 – 8 m SNR >50dB Lens Front view: 2.8mm@F2.0 In-car: 1.9mm@F2.0
Lens angle Front view: 1100 H /800V In-car: 1500 H /1000V
Electronic shutter AUTO: 1/50sec 1/60sec White balance AUTO Gamma correction 0.45 Image coloring Color, Black and white while IR in operation Mirror effect Available Interface 4-pin air connector Cable length 0.5m Voltage DC 9 – 14V Current 300mA@12V Temperature range -200 ～ 800 Moisture ≤95% IP code IP54 Original price was: $35.00.$29.00Current price is: $29.00. -
Side View Video Camera Model No XD-C2R1Model No XD – C2R1 ( car side view ) Imaging device 1/2.9 1M Pixel CMOS Pixels 720P/25fps 720P/30fps Video output AHD 1.0Vp-p/75Ω Minimum illumination 0.01Lux while IR in operation IR range 3 – 6 m SNR >50dB Lens 2.8mm F2.0 Lens angle 950 H 600 V Electronic shutter AUTO: 1/50sec 1/60sec White balance AUTO […]
$220.00 -
In-car Monitoring Video Camera XD – C214Technical Specifications
Model No XD – C214 ( in-car monitoring ) Imaging device 1/2.9 1M Pixel CMOS Pixels 720P/1080P/25fps 720P/1080P/30fps Video output AHD 1.0Vp-p/75Ω Minimum illumination 0.001Lux while IR in operation IR range 3 – 6 m SNR >50dB Lens 2.8mm F2.0 Lens angle 950 H 600V Electronic shutter AUTO: 1/50sec 1/60sec White balance AUTO Gamma correction 0.45 Image coloring Color, Black and white while IR in operation Mirror effect available Interface 4-pin air connector Cable length 0.5m Voltage DC 9 – 16V Current 240mA@12V Temperature range -300 ～ 850 Moisture ≤95% IP code IP54 Original price was: $16.00.$13.00Current price is: $13.00. -
Exterior Waterproof Car Security Camera MF – Z201Technical Specifications
Model No MF – Z201 ( outside the car in front or rear ) Image sensor 1/2.9 GC2053 CMOS Pixels 720P/1080P/25fps 720P/10800P/30fps Video output AHD PAL or NTSC format Minimum illumination 0.001Lux Night vision Yes DNR 3D DNR SNR >38dB Lens 2.8mm F1.4 CRA 120 Electronic shutter AUTO: 1/50sec 1/60sec Sensitivity 6400mV/Lux. S Image coloring Color Synchronization Internal Mirror effect Default mirror image mode, closed via DVR settings Interface 4-pin air connector ( 1-VCC, 2-GND, 3,4-video ) Cable length 2m Voltage DC 9 – 16V Temperature range -200 ～ 750 Moisture ≤90% IP code IP67 ( waterproof adhesive sealing, SS screws ) Original price was: $16.00.$14.00Current price is: $14.00. -

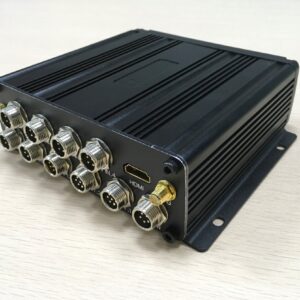

Miniaturized Mobile DVR ( ADAS + DMS )Technical Specifications
System Linux 3.10 Video In 4 CH AHD 1080P/720P + 1 CH IPC Video Coding H.265/H.264 Audio In 4 CH VoIP supported Video/Audio Out 1 CH ( CVBS ) Positioning GPS + BD2 dual positional modules Wireless Communication 4G embedded WiFi module Face ID & DMS ( optional )
Voice messages reminding you of drowsiness ( closing eyes, sighing ), smoking, making calls, driver absent, etc. ADAS ( optional ) Warnings against front collision, lane departure or being close to other cars Storage T-Flash card 256G x 2 Interface USB x 1 A/D converter x 2 RS232 x 1 RS485 x 1 CAN x 1
Gravity Sensor 3-axis Power AC/DC 9 – 36V Temperature Range -25～75℃ ( operation ) Moisture 10% – 95% RH Dimensions 90 x 90 x 30mm NWT 295g ( host processor ) Original price was: $139.00.$119.00Current price is: $119.00.
