$207.00
Features
- AI mobile DVR based on deep learning algorithms with embedded intelligence systems of ADAS and DMS for real-time surveillance of vehicles and fleet management on cloud platform
- Up to 8CH AHD video cameras at 1080P resolution may be integrated into the monitoring system
- Infrared and night vision security cameras may be connected for recording at low or even no light conditions at dark night
- PTZ cameras may be remotely accessed or controlled over the cloud platform to monitor events or environments over a large area. You can pan or tilt the camera to your desired angles on the platform
- Playback function to review the recorded video files which may be searched by date, time or triggered events
- Recording mode: normal, timer and triggered events
- Delayed shutdown up to nearly 24 hours after the vehicle is switched off
- Recording modes: normal, timer and alarm
- DVR control via a USB mouse or IR remote control
- Compatible with protocols of Wialon ( Gurtam ) , CMSV6 ( Babelstar ) and China’s JT808 for real-time monitoring, tracking of vehicles and fleet optimization and management
- GPS, 4G and WiFi are all optional catering to needs of different customers
- Recommended for use in commercial vehicles like passenger buses, heavy duty truck, vans, etc.
Description
AI Functions
Front Vision Detection ( ADAS )
To decrease avoidable crashes and to minimize accidents, the ADAS system will notify you of a pedestrian or a cyclist in the danger zone and alert you of any possibly imminent crashes. When you are veering off the current travel lane without a lane change signal, it will trigger voice warnings.
Lane Departure Warning and Pedestrian Protection ( ADAS )
The system alerts the driver, through audio and visual warnings, when your car deviates from the current lane or when any pedestrians walk nearby. The system is highly recommended for the drivers who feel drowsy easily on the road or often spend long hours driving.
Driver Monitoring System ( DMS )
You will hear a warning whenever our system detects any of your behaviors that are deemed abnormal or unsafe. The system alerts when the driver is out sight or whenever it detects any signs of drowsiness or distraction like closing eyes, yawning, smoking, making a phone call, etc.
Technical Specifications
| System | Linux |
| Languages | English or other languages as requested |
| Login Safety | Password for administrator and users |
| GUI | OSD overlay display |
| Video Input | 8CH AHD 1080P |
| Video Resolution | 1080P / 1080N / 720p / 960H / D1 / HD1 / CIF |
| Video Output | HDMI VGA AV |
| Video Standard | PAL/NTSC |
| Video Coding | H.265/H.265 dual stream coding |
| Video Display | Max 8 videos on a single screen |
| Audio | 8CH input 1CH output |
| Video Coding | H.265/H.264 high profile dual stream coding |
| Wireless Communication | 4G WiFi |
| G-sensor | Available |
| Positioning | GPS + BDS dual modules |
| Wireless Communication | 3G/4G WiFi |
| Storage | SD 256G x 2 HDD/SSD 2T x 1 |
| Interface | RJ45 x 1 HDMI x 1 VGA x 1 RS232 x 1
USB x 1 I/O: 6 alarm inputs and 1 alarm output |
| Power Input | 9 – 36V |
| Power Output | 12V |
| Temperature | -20℃ – 70℃ |
| Indicator Lights | Alarm SD GPS power recording net |
| Dimensions | 175 x 160 x 65mm |
Vendor Information
- No ratings found yet!
-

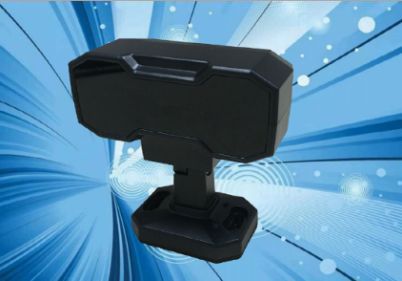

In-car and Front View Dual Lens Camera Model No XD-C3T1Model No XD – C3T1 ( in-car and front view ) Imaging device 1/2.9 1M Pixel CMOS Pixels 1080P/25fps 7P/30fps Video output AHD 1.0Vp-p/75Ω Minimum illumination Front view: 0.01Lux In-car: 0Lux with IR in operation IR range 3 – 8 m SNR >50dB Lens Front view: 2.8mm@F2.0 In-car: 1.9mm@F2.0 Lens angle Front view: 1100H /800V […]
