$12.00
Technical Specifications

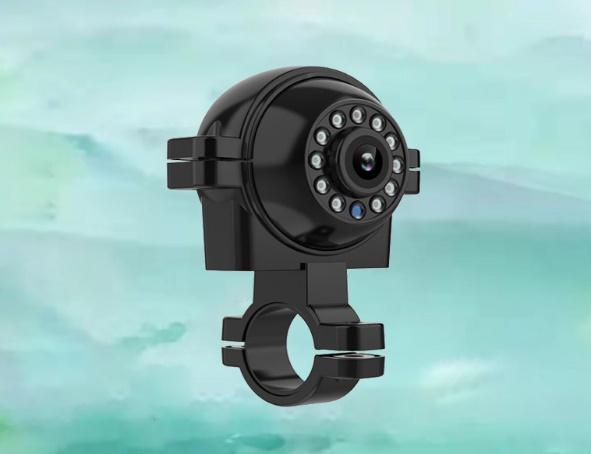

| Model No | MF – Z101 ( Interior Car Surveillance ) |
| Pixels | 720P/1080P/25fps 720P/1080P/30fps |
| Video output format | AHD in PAL or NTSC standard |
| Image sensor | 1/2.9 GC2053 CMOS |
| Minimum illumination | 0.001Lux@( F1.2, AGC ON ) , OLUX with IR |
| IR range | 3 – 6m |
| DNR | 3D DNR |
| SNR | >38dB |
| Sensitivity | 6400mV/Lux. s |
| Lens | 2.8mm F2.0 |
| CRA | 120 |
| Electronic shutter | AUTO: 1/50sec 1/60sec |
| Image coloring | Color, Black and white while IR in operation |
| Mirror effect | Default normal mode, changed to mirror image mode via DVR settings |
| Synchronization | Internal |
| Interface | 4-pin air connector |
| Cable length | 0.5m |
| Voltage | DC 9 – 16V |
| Temperature range | -200 ～ 750 |
| Moisture | ≤90% |
| IP code | IP54 |
