$157.00
Features
- A professional car video recording and monitoring device with embedded intelligence systems of ADAS and DMS
- Analog high definition ( AHD ) video channels with an IP camera
- Infrared and night vision security cameras may be connected
- Snapshot configuration available
- GPS+BDS dual positioning modules
- 4G/ WiFi wireless transmission
- Recording modes: continuous/alarm
- Storage via TF card and HDD/SSD
- Car malfunctions or breakdowns recorded and transferred online
- A panic button for use in case of emergency
- For tracking, surveillance and fleet management online when connected to our platform
- Recommended for passenger buses, school buses, heavy duty trucks or a fleet of vehicles
Description
AI Functions
Face Identification ( Face ID )
The system captures human faces and compares them against those that have been preserved in file to determine whether they match with each other. This helps to prevent unauthorized drivers from driving vehicles.
Driver Monitoring System ( DMS )
You will hear a warning whenever our system detects any of your behaviors that are deemed abnormal or unsafe. The system alerts when the driver is out sight or whenever it detects any signs of drowsiness or distraction like closing eyes, yawning, smoking, making a phone call, etc.
Front Vision Detection ( ADAS )
To decrease avoidable crashes and to minimize accidents, the ADAS + system will notify you of a pedestrian or a cyclist in the danger zone and alert you of any possibly imminent crashes. When you are veering off the current travel lane without a lane change signal, it will trigger voice warnings.
Lane Departure Warning and Pedestrian Protection ( ADAS )
The system alerts the driver, through audio and visual warnings, when your car deviates from the current lane or when any pedestrians walk nearby. The system is highly recommended for the drivers who feel drowsy easily on the road or often spend long hours driving.
Integrated Design and Wide Applications
The system integrates DVR with multiple functions like face ID, DMS and ADAS and is easy to handle. We recommend the use of this intelligent mobile DVR for fleet surveillance and management of public buses, school buses, delivery trucks, oil tankers, coaches, vans or other commercial vehicles.
Technical Specifications
| System | Linux |
| Video Input | 4 CH AHD 1080P@25fps/720P@25fps + 1 IPC |
| Video Coding | H.265/H.264 high profile dual stream coding |
| Video output | 1 CH D1 + 1 CH VGA |
| Video connector | CVBS |
| OSD | Time, car plate No, position, etc. video overlapping |
| Snapshot | Yes |
| Audio | 1 CH input G.711, G726 audio stream coding |
| Positioning | GPS + BDS dual systems,
Accuracy: ≤ 2.5m ( position ), ≤ 0.1m/s ( speed ) |
| Wireless communication | 4G/3G WiFi ( optional ) |
| Storage | 1 x TF ( max 256G ) HDD/SSD ( 1T/2T ) |
| Peripheral Interface | LAN: 10/100<Mbps 6-pin air connector
USB x 1 RS485 x 1 I/O: 4 inputs and 1 output |
| Indicator lights | alarm, video, recording, platform, positioning, power |
| Power Input | DC9V～36V |
| Power output | 12V 5V |
| Temperature Range | -30～70℃ ( operation ) -40～85℃ ( storage ) |
| Humidity | 93% |
| Dimensions | 175 x 136 x 70mm |
Vendor Information
- No ratings found yet!
-
Gas Spring Mobile Desk VM-FDS107CFeatures
800x400x15mm MDF Desktop, wear-resistant, easy to
clean.
2-stage, Round Reversed Column. Max.
load:10kgs/22lbs
Height Range: 750-1090mm
Steel and Aluminum frame, safety and stability.
4 wheels, 2 lockable, which can be moved anytime and
anywhere.Package:
QTY: 1 pcs/ctn
Carton Size: 840x440x225mm
N.W./G.W.: 13.2 / 16.7kgs -
3×3 galvanized welded wire mesh panels for fence panelMaterial ?low carbon steel wire, stainless steel wire Wire diameter 1mm – 6.0 mm Fence size 1800 x 3000 mm, 2000x3000mm, 1500x2000mm, etc Surface treatment plastic spraying, PVC coated, galvanized +PVC, powder coated Color black, customer requirement is acceptable Attachment rain hat, clip, bolt, chassis Bending offered one bending, two bending, three bending, four bending Special requirement welcome to contact us ASAP. $25.00 -
PB with RGB light* PB tabletop, 2 splits, 1200x300x18mm *2cps
* table angle adjustment
* Folding table legs, unique shape$78.64 -
China Top Quality Garden Wire – Durable 0.9mm pvc coated wirematerial :low carbon stell ,steel wire
wire diamere:0.5-6mm
weight /roll:0.5kg ,1kg ,2kg ,5kg ,10k
color :yellow ,green , black,
surface treatment :pvc coated
Feature: Easy to unroll and install
Application: Binding wire, Daily uses$5.50 -
Gaming Gas Spring Single Monitor Arm VM-GE22 Features:
• Quick panel insertion
• No need to replace the original desktop, saving
space;
• Various installation modes of clamping/punching
are freely selected;
• Aluminum alloy rust prevention, high-end quality
assurance;
• Suitable for multi-size display, up to 32 inches;
• Longer arm span, wider adjustment range;
• Support horizontal and vertical screen rotation to
meet the needs of different occupations
• The wiring is convenient for the storage and
management of wires
• Integral masonry cutting modeling
• Light: Single Light such as Blue,Red
Product Enquiry
Related products
-
Mobile DVR with Automatic Passenger Counting System ( APC ) Model No C8FH8-AI-1Automatic Passenger Counting ( APC )
- An automatic passenger counting system that monitors real-time passenger flows of public transport vehicles.
- The AI algorithm software inside the intelligent DVR processes live video data from the binocular cameras mounted above the entry and exit doors.
- The APC system counts boarding and alighting passengers at the accuracy of no less than 97%.
- The counting system delivers instant and accurate real-time data of date, time, location, etc. at each location.
- The passenger counting data helps optimize deployment of public transport vehicles as per passenger volume at different times a day.
- Various solutions are available for buses of 1, 2 or 3 doors.
$240.00 -

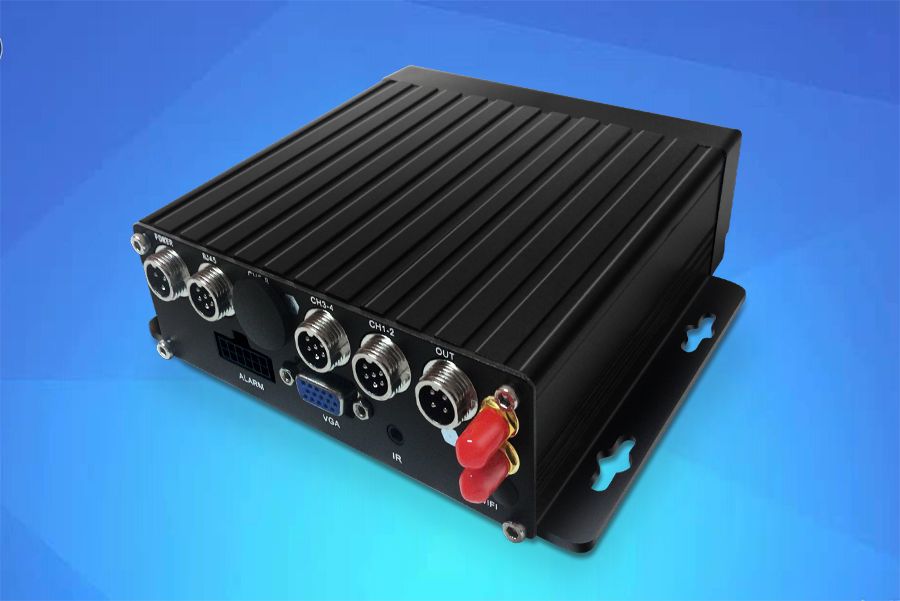

Mobile DVR 48 CH SD Model No A4FK10Features
