Features

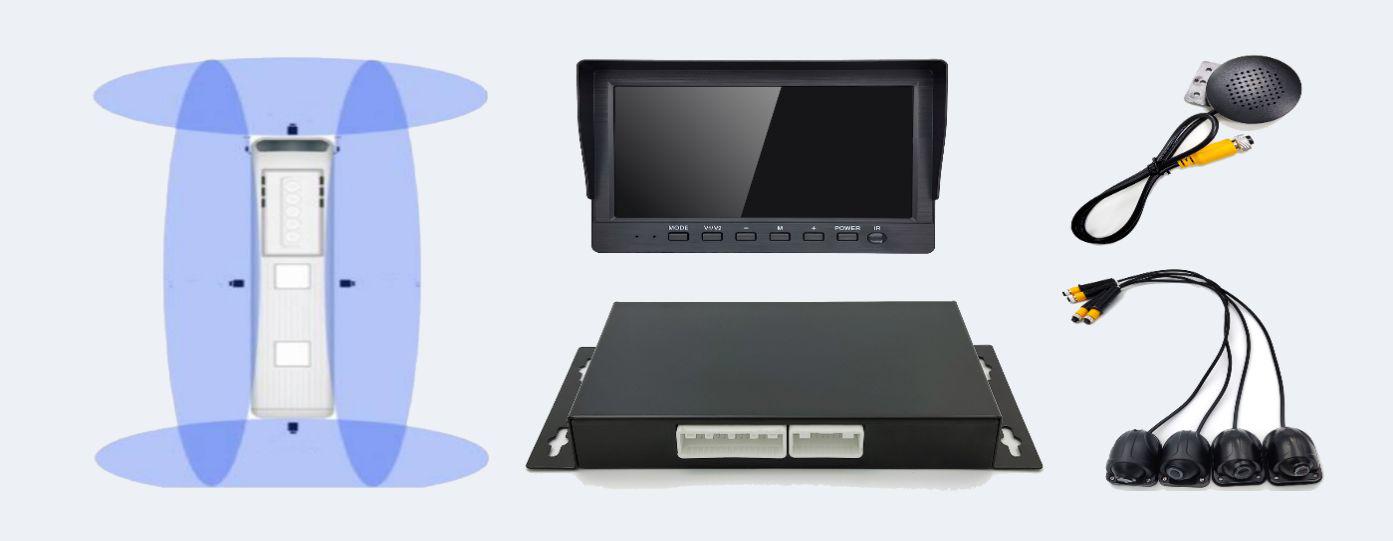

- The images from four or maximum six cameras mounted around the vehicle are processed in the control unit and integrated into one image on a display screen. The driver can have a complete view of the surroundings of his or her vehicle at a single glance.
- The system monitors its surroundings in real time and provides the driver with instant images and videos minimizing risks of collisions or accidents and enhancing safety.
- The camera system alerts the driver whenever it detects pedestrians or vehicles in a blind spot zone.
- The system connects waterproof HD cameras as per IP67 criteria.
[For further details click on the logo to visit manufacturer website Macfaith.com]
Description
Technical Specifications
| SOC Model | ZX-2800 |
| SOC processor | CortexA9 1GHz x 2 + VivanteGC2000 |
| RAM | 1600MHz_DDR3_1Gx2 |
| ROM | SPI_Nandflash_512MB |
| Video in | AHD ( 1920 x 1080P ) |
| Video out | CVBS ( PAL/NTSC ), AHD ( 1080P/720P ),
TVI ( 1080P/720P ), HDMI ( 1080P/720P ), VGA |
| Interface trigger | UART |
| Digital interface | USB2.0 |
| Operational voltage | 9 – 36V |
| Output voltage | 12V ( for video cameras ) |
| Electrical current | 300MA/24V |
| Video segment | 3m, 5m, 10m |
| Storage capacity | U disk: 2 – 32GB, MSATA SSD: 2G – 2T |
| Video monitor | 10” TFT-LCD 1280 ( RGB ) x 800 pixel |
| Video camera | Sony IMX307 |
| Photosensitive pixel | 1920 ( H ) x 1080 ( V ) |
| Viewing angle | 1800 ( H ), 1400 ( V ) |
| Operational temperature | -30 ~ 80℃ |
| Storage temperature | -40 ~ 100℃ |
| IP standard | IP67 |
