$925.00

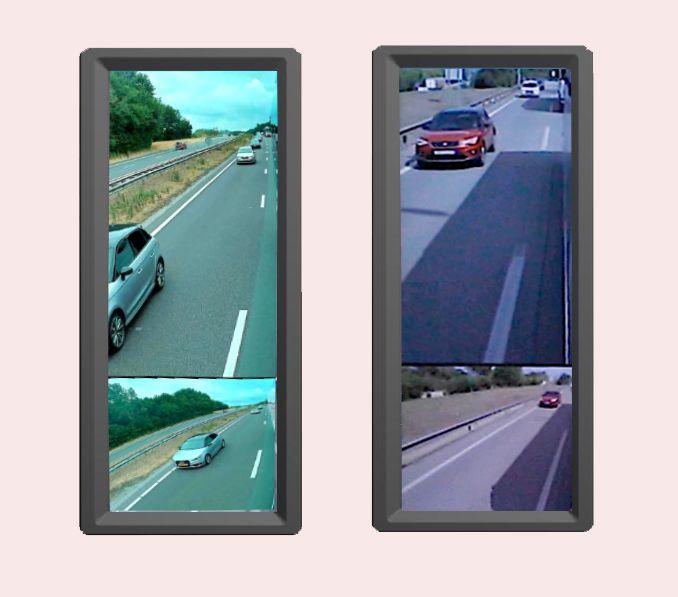

All-in-one solutions with optimized visibility that allows the driver to maneuver comfortably and easily in dust, rain and night conditions.Â
Benefits and FeaturesÂ
- The smart interior rearview mirror is designed for such commercial vehicles as passenger buses, coaches, trucks, oil tanks, trailers, forklifts, etc. It can be used to completely replace the traditional rearview mirrors.Â
- A wider field of vision with superior visibility that eradicates the lateral blind spots and minimizes risks of collisions and accidents.
- High-definition cameras and interior displays eliminate glares and automatically adjust the brightness in all light and weather conditions.Â
- Double curvature mirrors help reduce the blind area as much as possible.
- Automotive grade display mirrors that show crystal clear videos even in harsh sun rays.
- Drivers can read and watch the mirror videos even in polaroid sunglasses. The mirror adjusts its brightness automatically dependent on changes of its surrounding lights.
- Night vision cameras that enable you to drive safely at night.Â
- BSD smart system that alerts the driver of the vehicles and   pedestrians that occur in the blind zone.   Â
- 360 degree surround view cameras may be connected for a better all-round vision surrounding your vehicle.Â
- The technical specifications of the digital rearview mirror meet the requirements of UNECE R46 Regulation and has passed the verification of GB15084-2022, the state standard of China which has the same technical specifications of UNECE R46 Regulation.
- Dimensions: 330 x 150 x 29mm. NWT: 1000g.
Description

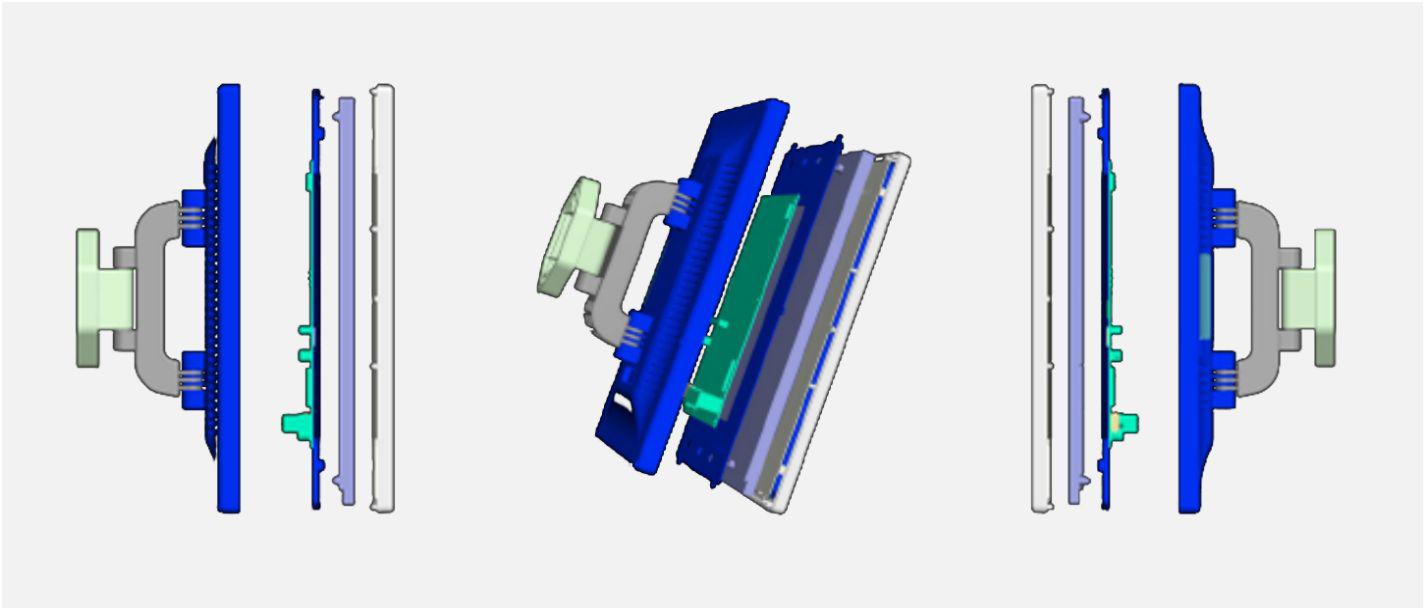

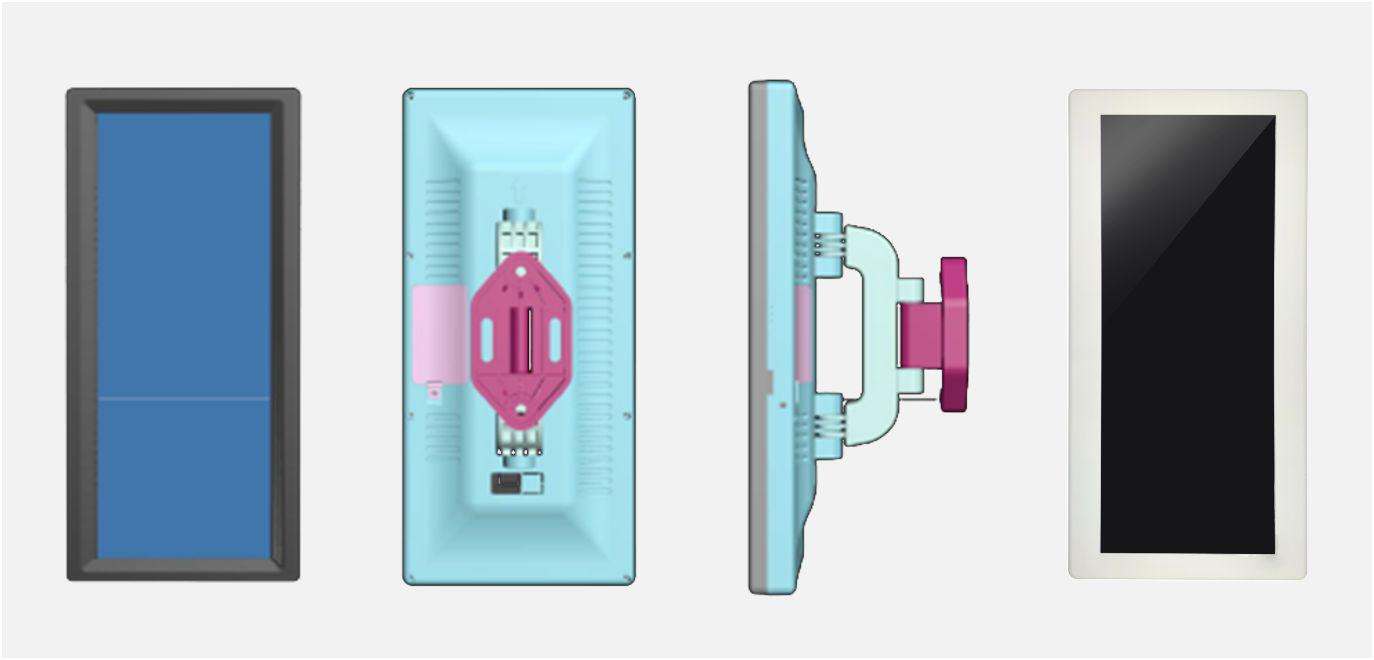

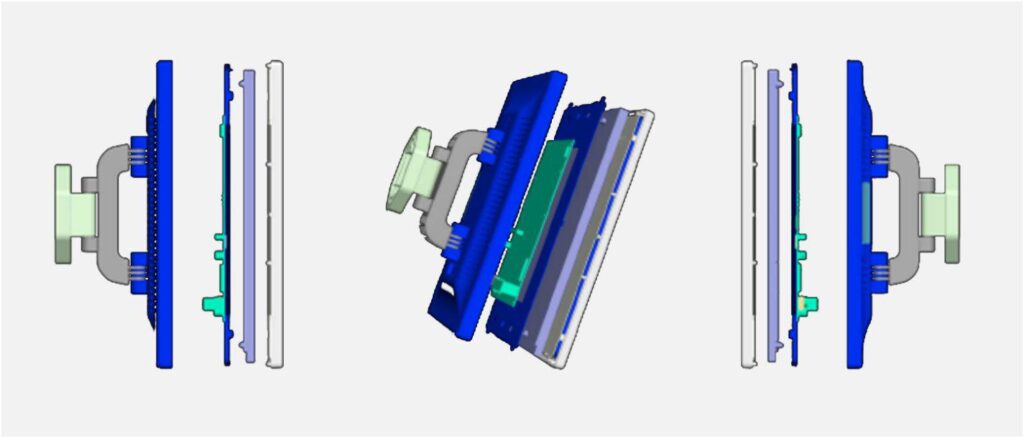

Product Structure and Relevant Diagrams

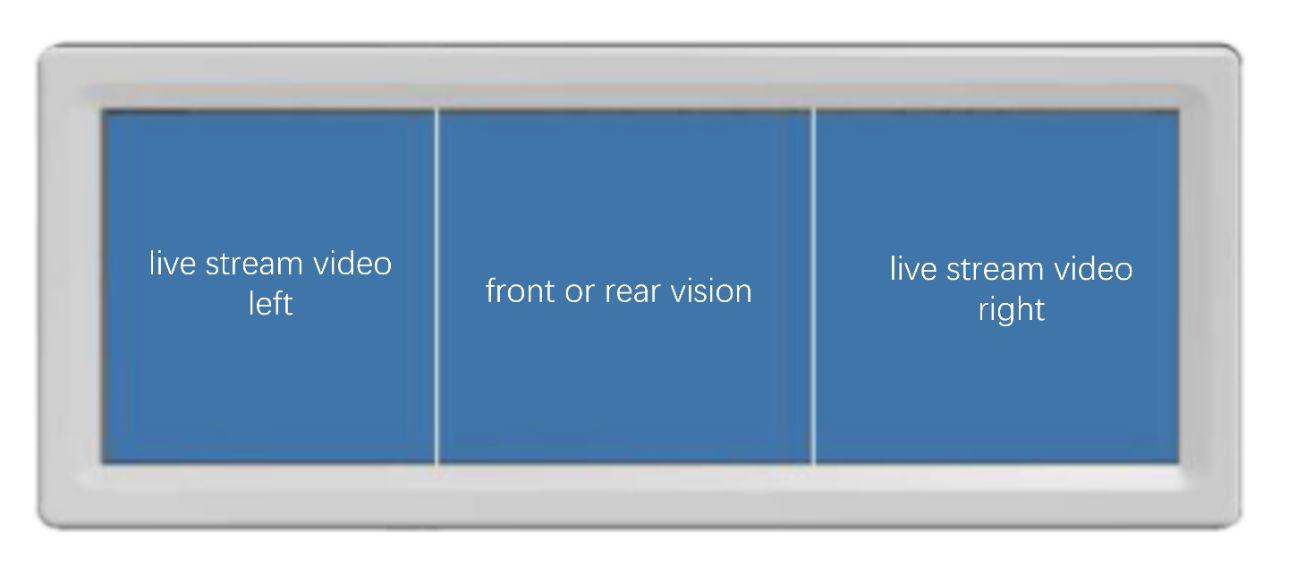

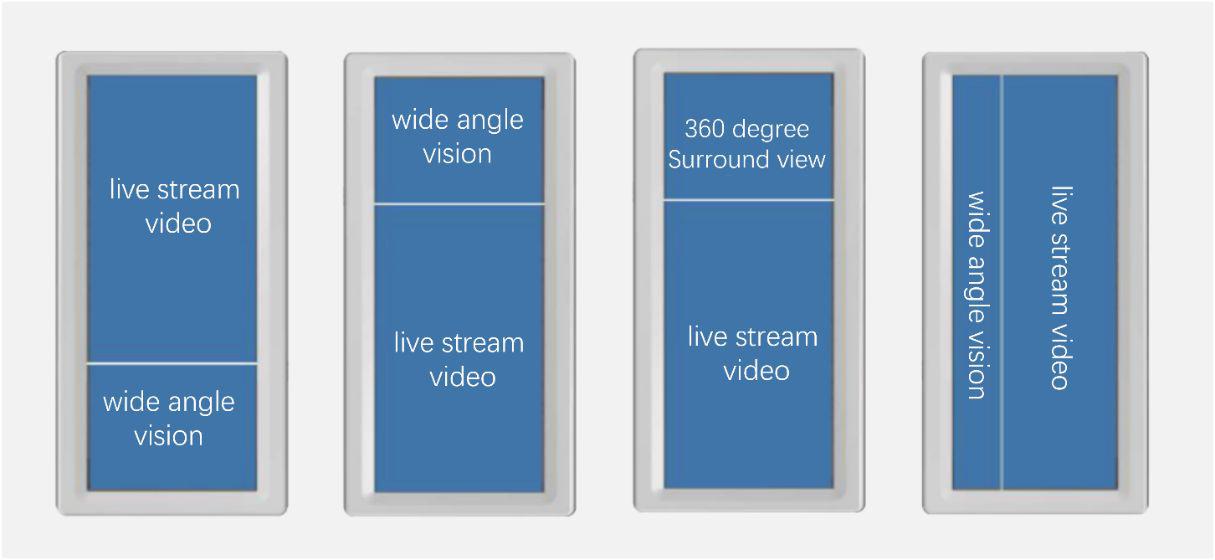

Display Mode Settings
Technical Specifications
| System | Linux |
| Display monitor   | TFT-LCD 12.3 inch ( 8:3 ) IPS   |
| Resolution | 1920×3(RGB) x 720 Pixel |
| Brightness | 1000cs/m2 |
| Contrast ratio   | 1000:1   |
| Viewing angle | U/D: 450/450  L/R: 450/450   |
| SOCÂ Â Â | Hisilicon HI3521AÂ |
| SOC processor    | CoretxA9 1GHzx2 + VianteGc2000  |
| RAMÂ | 1600MHz_DDR3_2GBx2Â Â Â Â |
| ROM | SPI_NandFlash_512MBÂ Â |
| Video channel   | AHD1920x1080 |
| Control interface  | RS232/UART  |
| Storage interface  | TF/Msata |
| Video resolution | 1920 x 1080Â Â Â |
| Rated operational voltage | 24V  |
| Rated operational current | 350mA |
| Power | <10W    |
| Operating temperature | -30 ~ -800C |
| Storage temperature | -40 ~ -950C |
| Dimensions | 330 x 150 x 29mm |
| NWT | 1000g |
Loading...
Vendor Information
- No ratings found yet!
-

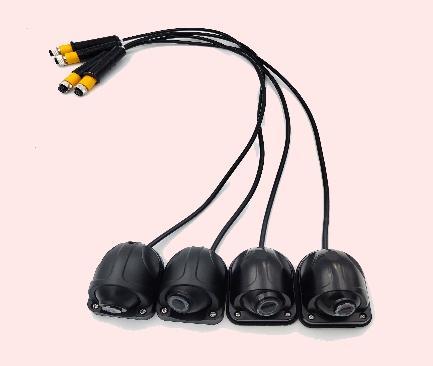

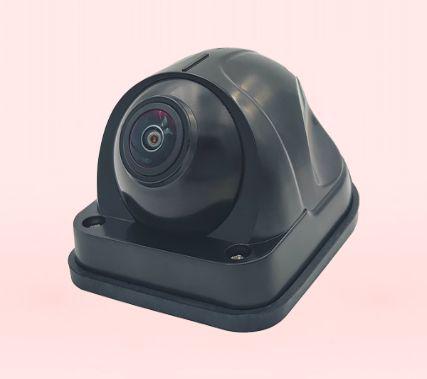

Side View Video Camera Model No XD-C2R1Model No XD – C2R1 ( car side view ) Imaging device 1/2.9 1M Pixel CMOS Pixels 720P/25fps 720P/30fps Video output AHD 1.0Vp-p/75Ω Minimum illumination 0.01Lux while IR in operation IR range 3 – 6 m SNR >50dB Lens 2.8mm F2.0 Lens angle 950 H 600 V Electronic shutter AUTO: 1/50sec 1/60sec White balance AUTO […]
$220.00 -
Front & Rear View Dual Lens Car Camera XD-C3T2Technical SpecificationsÂ
Model No  XD – C3T2  ( front and rear view ) Imaging device 1/2.9 1M Pixel CMOS Pixels 720P/1080P/25fps   720P/1080P/30fps Video output AHD 1.0Vp-p/75Ω Minimum illumination Front view: 0.01Lux  In-car: 0lux ( IR open ) In-car: 0Lux with IR in operation
IR range 3 – 8 m SNR >50dB Lens  Front view: 2.8mm@F2.0 In-car: 1.9mm@F2.0
Lens angle Front view: 1100 H /800V In-car: 1500 H /1000V
Electronic shutter AUTO: 1/50sec  1/60sec White balance AUTO Gamma correction 0.45 Image coloring Color, Black and white while IR in operation Mirror effect Available Interface 4-pin air connector Cable length 0.5m Voltage DC 9 – 14V Current 300mA@12V Temperature range -200 ～ 800 Moisture ≤95% IP code IP54 Original price was: $35.00.$29.00Current price is: $29.00. -
In-car Rotating Camera XD – C2T3Model No   XD – C2T3 ( in-car monitoring )   Imaging device 1/2.9 1M Pixel CMOS  Pixels 1080P/25fps   Video output AHD 1.0Vp-p/75Ω  Minimum illumination 0.01Lux    SNR >50dB    Lens  2.8mm  F2.0 Lens angle 950 H   600V   Electronic shutter AUTO: 1/50sec  1/60sec White balance AUTO Gamma correction 0.45  Image coloring Color    Mirror effect Available  Interface  4-pin air connector Cable length 0.5m Voltage DC 9 – 16V Current 240mA@12V Temperature range -300 ～ 850 Moisture ≤95% IP code IP54  Weight 80g $13.00 -
Exterior Vehicle Camera XD – C2R4Technical Specifications
Model No   XD – C2R4 ( exterior camera surrounding the vehicle )   Imaging device 1/2.9 1M Pixel CMOS  Pixels 720P/1080P/25fps  720P/10800P/30fps Video output AHD 1.0Vp-p/75Ω  Minimum illumination 0.001Lux  IR range N/A SNR >38dB    Lens  1.98mm  F1.2 Lens angle 1840D  1540 H  840V   Electronic shutter AUTO: 1/50sec  1/60sec   White balance AUTO Gamma correction 0.45  Image coloring Color   Mirror effect Available Interface  4-pin air connector ( 1-VCC, 2-GND, 3,4-video ) Cable length 2m Voltage DC 9 – 16V Current 350mA@12V max Temperature range -200 ～ 800 Moisture ≤95% IP code IP67 ( waterproof adhesive sealing, SS screws ) Weight 85g $14.00 -
Rear View Video Camera Model No XD-C2B1Model No XD – C2B1 ( rear view for car reversing ) Imaging device 1/2.9 1M Pixel CMOS Pixels 720P/25fps 720P/30fps Video output AHD 1.0Vp-p/75Ω Minimum illumination 0.01Lux while IR in operation IR range 3 – 6 m SNR >50dB Lens 2.8mm F2.0 Lens angle 950 H 600 V Electronic shutter AUTO: 1/50sec 1/60sec White […]
$220.00 -
Dash Camera for TaxiTechnical Specifications
System Linux Front Camera 1080P@25fps 2.8mm   1200  horizontal Rear Camera 720P@25fps 2.0mm   1300 horizontal  Video In 2 CH 1080P/720P Video Encoding  H264 dual stream coding Candid Photography Yes Audio In 1 CH VoIP embedded Audio Encoding G.726 Audio Out 1 CH Interface T-Flash x 1    SIM card x 1 Positioning GPS + BD3  warm start≤1s cold start≤38s Accuracy 2.5m ( CPE ) Wireless Communication 4G, WiFi Storage T-Flash card 512G x 1 Power In 9 – 36V Temperature Range -20～70℃ ( operation ) Original price was: $119.00.$109.00Current price is: $109.00.
Product Enquiry
Related products
-
360 surround view camera systemFeaturesÂ
- The images from four or maximum six cameras mounted around the vehicle are processed in the control unit and integrated into one image on a display screen. The driver can have a complete view of the surroundings of his or her vehicle at a single glance.Â
- The system monitors its surroundings in real time and provides the driver with instant images and videos minimizing risks of collisions or accidents and enhancing safety.Â
- The camera system alerts the driver whenever it detects pedestrians or vehicles in a blind spot zone. Â
- The system connects waterproof HD cameras as per IP67 criteria.
$259.00 -
Exterior Waterproof Car Security Camera MF – Z201Technical Specifications
Model No  MF – Z201 ( outside the car in front or rear )   Image sensor 1/2.9 GC2053 CMOS Pixels 720P/1080P/25fps     720P/10800P/30fps Video output AHD PAL or NTSC format Minimum illumination 0.001Lux Night vision  Yes DNR 3D DNR SNR >38dB Lens  2.8mm   F1.4 CRA 120 Electronic shutter AUTO:  1/50sec   1/60sec Sensitivity 6400mV/Lux. S Image coloring Color Synchronization Internal Mirror effect Default mirror image mode, closed via DVR settings Interface 4-pin air connector ( 1-VCC, 2-GND, 3,4-video ) Cable length 2m Voltage DC 9 – 16V Temperature range -200 ～ 750 Moisture ≤90% IP code IP67 ( waterproof adhesive sealing, SS screws ) $13.00 -
Taxi Dash Camera 2CH SD Model No FLDC09
Features   Â
- Â Â A smart dash camera for taxi, private cars, mini-bus, etc.Â
- Double AHD cameras facing forward and backward. Two more cameras may be connected if necessary.  Â
- Real-time or scheduled recording mode for your option. Â
- DMS camera with night vision effect.      Â
- 4G/ WiFi wireless transmission. Â
- GPS/ BDS positioning modules.Â
- With embedded speaker and microphone, VoIP for communications between the driver and the platform on the internet.Â
- An emergency button for use in case of emergency
- ADAS system: front vision detection, lane departure alert and pedestrian warning.Â
- DMS system that alerts the driver of signs of fatigue, drowsiness, etc.Â
- Face identification ( Face ID ) that triggers prompt alarms when detecting unauthorized driver’s face.Â
- Compliant with CMSV6 or Wialaon platform Â
- For tracking, surveillance and fleet management online when connected to the platform on either PC or cell phones.
$147.00 -
Taxi Dash Camera 2CH SD Model No X1Features   Â
- A compact telematics design for taxi, private cars, mini-bus, etc.Â
- Mounted with a 1200 forward looking camera and a rear view night vision camera looking back into your car inside.  Â
- High definition videos     Â
- 4G/ WiFi wireless transmission Â
- GPS/ BDS positioningÂ
- VoIP for communications between the driver and the platform on the internetÂ
- Delayed shutdown of video recordingÂ
- Reboot the system from sleep mode via remote controlÂ
- An emergency button for use in case of emergencyÂ
- Embedded ADAS and DMS camera systems with face identificationÂ
- ADAS system: front vision detection, lane departure alert and pedestrian warning. Â
- For tracking, surveillance and fleet management online when connected to the platform on either PC or cell phones. Â
- Size：160 x 84 x 34mm  Â
$127.00
