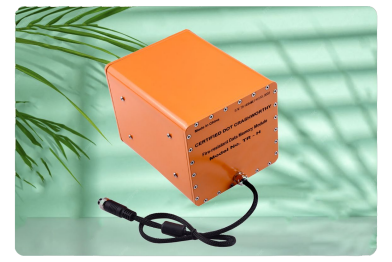

Crashworthy Fireproof Train Data Memory Device TR – H Model ( US DOT Criteria )

Features:

• A compact crashworthy memory device specially designed for data protection of train recording systems in extremely harsh conditions such as fire, explosion, immersion, or hard crash.

• Quality standard in compliance with US Federal Regulations Title 49: Criteria for Certification of Crashworthy Event Recorder Memory Module (FRA 49 CFR Part 229, Appendix D, Option B). The high-intensity fire resilience is 100°C higher than the said criteria, far exceeding the standards: IEEE 1482.1-2013 or IEC 62625.1-2013.

• Withstands 120 minutes at 1100°C high-intensity fire or 60 minutes at 1100°C followed by 10 hours at 260°C, exceeding the fireproof performance standard of a Flight Data Recorder (FDR) as per Airborne Recording System Standard ED-155A:2025 issued by EUROCAE.

• Functional at 100 m underwater for 240 hours.

• Also suitable for data protection of heavy-duty trucks, oil tank vehicles, or anywhere there is a high demand for data safety in harsh environments.

• Two-year warranty.

• NWT: 6.3 kg

• Size: 170 × 130 × 130 mm
