$240.00
Automatic Passenger Counting ( APC )
- An automatic passenger counting system that monitors real-time passenger flows of public transport vehicles.

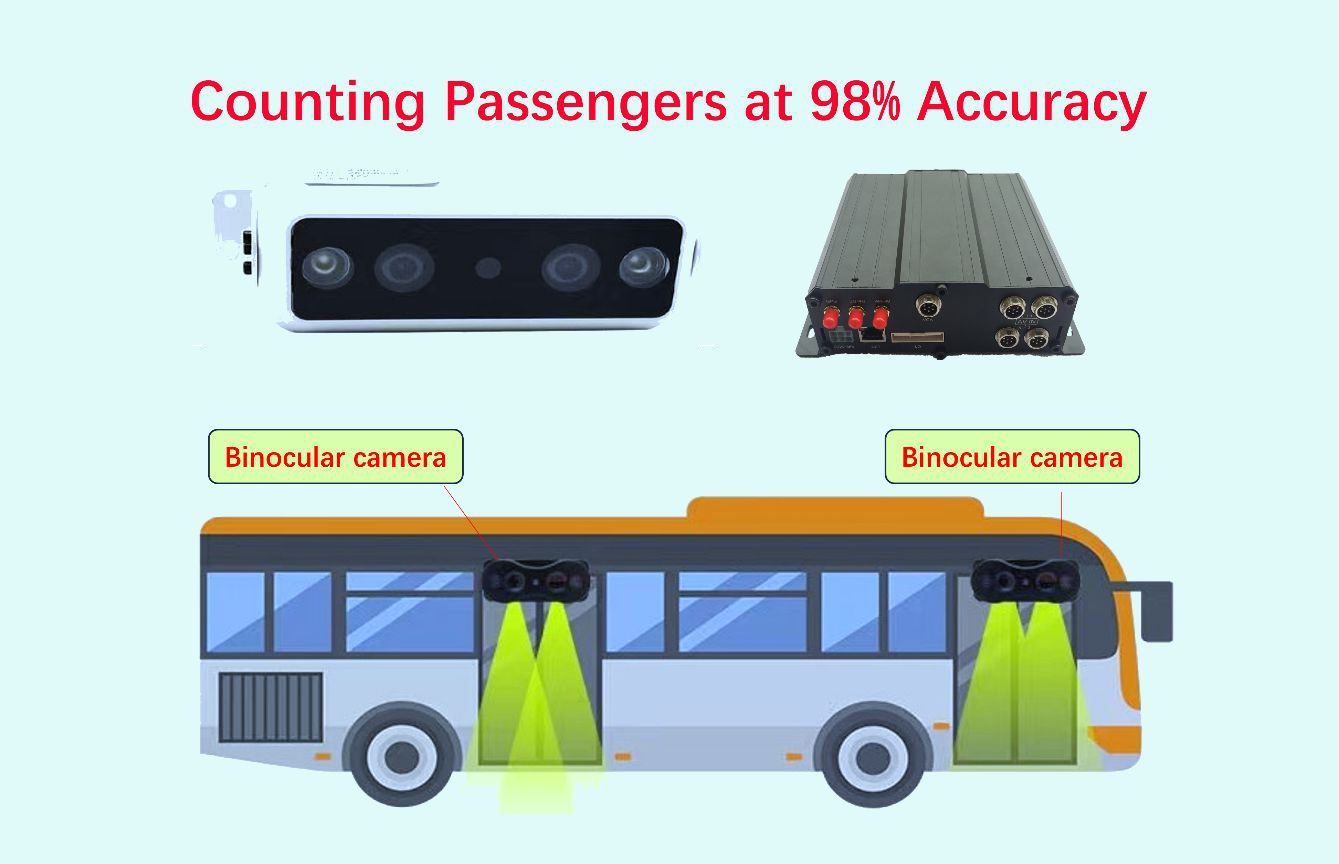

- The AI algorithm software inside the intelligent DVR processes live video data from the binocular cameras mounted above the entry and exit doors.
- The APC system counts boarding and alighting passengers at the accuracy of no less than 97%.
- The counting system delivers instant and accurate real-time data of date, time, location, etc. at each location.
- The passenger counting data helps optimize deployment of public transport vehicles as per passenger volume at different times a day.
- Various solutions are available for buses of 1, 2 or 3 doors.
Description
| Camera Lens | Coverage Height | Coverage Width | Camera Height |
| 2.8mm | 110-140cm | 100-140cm | 195-210cm |
| 3.6mm | 100-120cm | 90-120cm | 210-240cm |
| 4mm | 95-110cm | 105-110cm | 230-260cm |
DVR Features
- An intelligent mobile DVR for tracking and detection of various vehicles recording what’s happening inside and outside
- Up to 8 full HD cameras 1080P including the binocular cameras normally fixed above the entry and exit doors
- Binocular camera video format: PAL & NTSC
- Recording modes: continuous, scheduled and alarm triggered
- Max 4T 2.5” HDD and 256G SD card
- Delayed shutdown of video recording for up to 24 hours
- Watchdog to boot the system in case hardware faults or software errors are identified
- UPS system to ensure normal operation of the DVR for 10 – 15 seconds during power outages
- M12 aviation connector adopted
- GPS/BDS positioning module, WiFi, 3G/4G and 3-axis G-Sensor available for your option
DVR Technical Specifications
| System | Linux |
| Languages | Chinese, English, etc. |
| Login Safety | Password for login by both user and administrator |
| GUI | OSD overlay display |
| Video Input | Max 8 CH 1080P, 720P, D1, HD1, CIF |
| Split screen | 1 – 4 videos |
| Image Compression | H.265 |
| Video Output | 1CH VGA 1CH CVBS |
| Video Quality | 7 levels adjustable |
| Video Playback | Max 8 playback simultaneously |
| Audio | Max 8 CH input 2 CH output |
| Audio Compression | G.726 8KB/s |
| I/O Alarm | 8 CH IO interface 2 CH output |
| Storage | Max HDD ( 4T )/SSD x 1 & SD card 256G x 2 |
| Interfaces | RS232 x 3 RS485 x 1 USB x 1 |
| Power Input | DC 9～36V |
| Power Output | 12V@2.5A |
| Power Consumption | < 5W |
| Operating Temperature | -20～70℃ – |
| Operating Humidity | 20%～80% |
| Dimensions | 200 x 187 x 65mm ( D/W/H ) |
