Name: Mobile DVR 4/8 CH HDD with ADAS &amp; DMS Model No C8FH8-AI-2
SKU: 8625
Availability: InStock

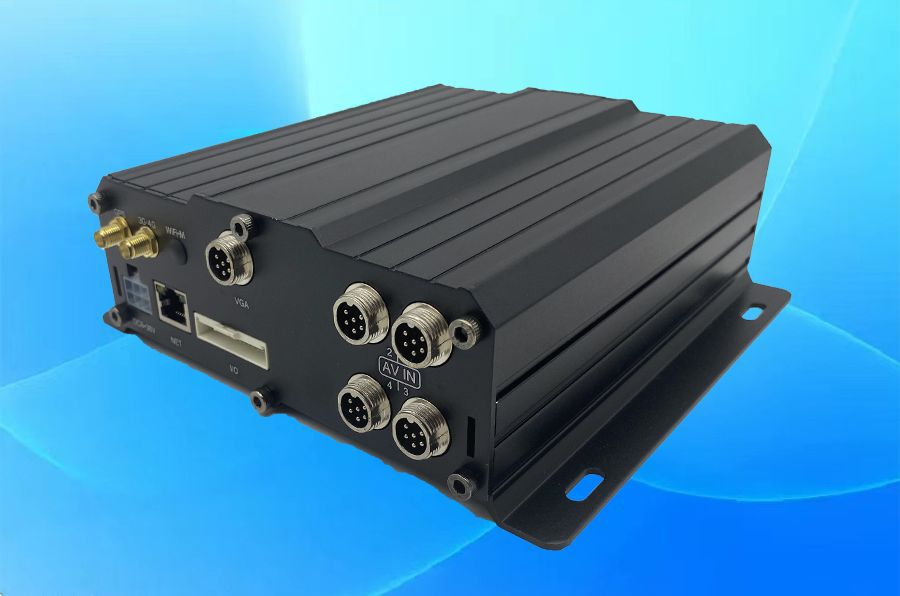

Mobile DVR 4/8 CH HDD with ADAS & DMS Model No C8FH8-AI-2

$250.00

Features

AI mobile DVR with embedded ADAS and DMS systems based on deep learning algorithms

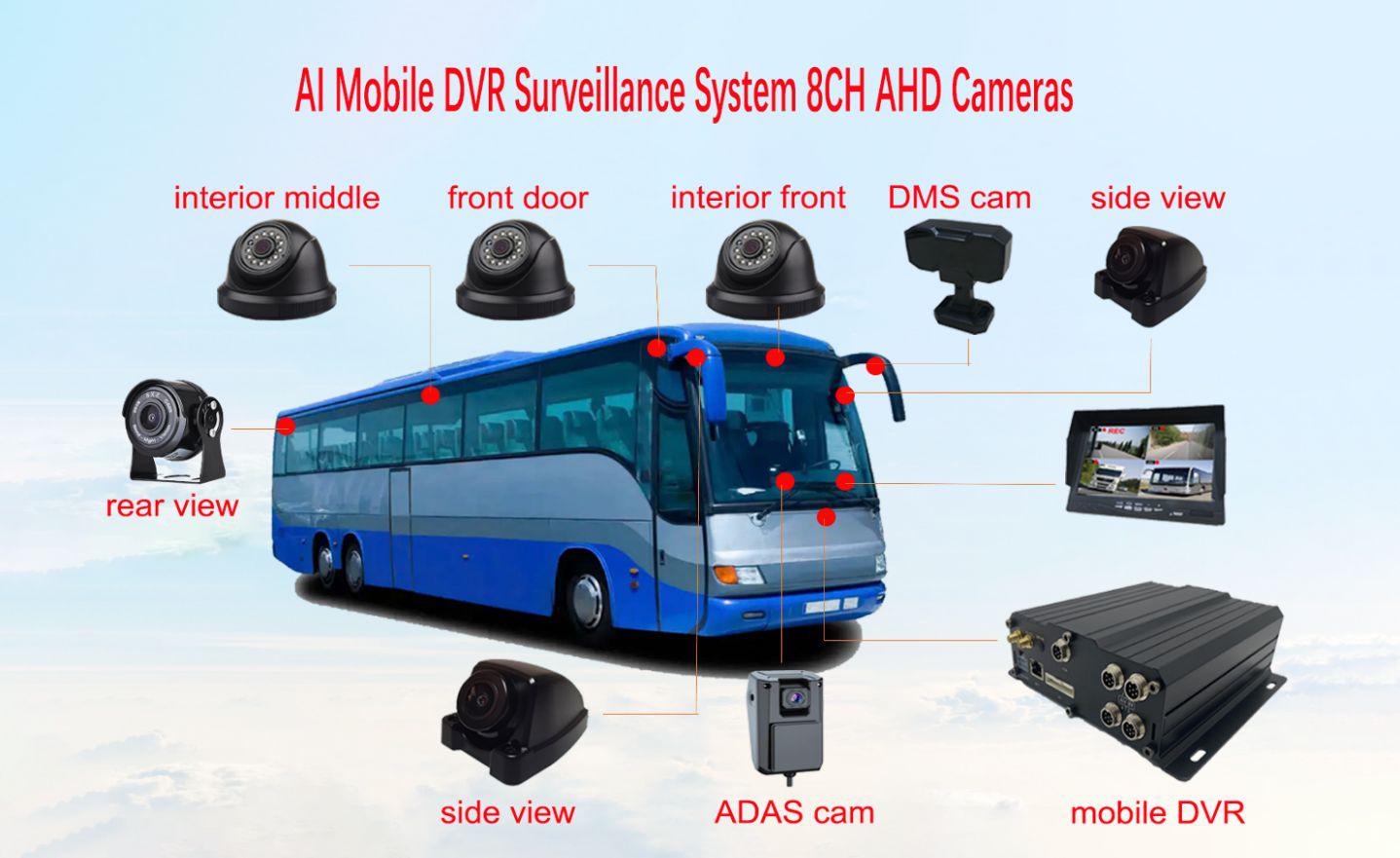

Up to 8 high-definition AHD cameras at 1080P resolution
Recording modes: normal, scheduled and alarm triggered
The telematics system provides vehicle data of location, speed, routes, sudden acceleration, ultralow speed, fuel consumption, etc. enhancing safety, operational efficiency and fleet optimization
Infrared cameras capturing videos at low or no light conditions at dark night
An occlusion alarm will be triggered when any of your car cameras is blocked in whole or in part.
Intercom system for audio communication between vehicles and the platform
Delayed shutdown of video recording for up to 24 hours
Watchdog to boot the system in case hardware faults or software errors are identified
UPS system to ensure normal operation of the DVR for 10 – 15 seconds during power outages
Status LED indicator: PWR, GPS, HOT HDD, SD, REC, ALM, NET
Compatible with platform software of Wialon ( Gurtam ) and CMSV6 ( Babelstar ) for real-time monitoring, tracking of vehicles and fleet optimization and fleet management

Category: MOBILE DVR Tag: Car DVR

Description

AI Functions

Advanced driver-assistance system ( ADAS ) alerts the driver of potential hazards or an impending collision in the front. The system also provides vocal alarms when your vehicle is veering out of the current lane or when pedestrians or motor vehicles are moving too close to your vehicle.

Driver monitoring system ( DMS ) keeps track of the driver continuously with a smart camera. The system assesses and analyzes the driver’s behavior with the intelligence learning technology triggering immediate alerts when it identifies signs of distraction ( smoking, making calls ) or drowsiness ( yawning, blinking or closing eyes ). DMS helps avoid potential hazards or road accidents and boost the driver’s good habit of driving.

Technical Specifications

System	Linux
Languages	Chinese, English, and others as requested
Login Safety	Password for login by both user and administrator
GUI	OSD overlay display
Video Input	Max 8 CH 1080P, 720P, D1, HD1, CIF
Split screen	1 – 8 videos
Image Compression	H.265
Video Output	1CH Composite 1CH VGA
Audio	Max 8 CH input 2 CH output
Audio Compression	G.726 8KB/s
Wireless Communication	3G/4G WiFi
Positioning	GPS/BDS dual modules
G-Sensor	Available
I/O Alarm	8 trigger inputs 2 trigger outputs
Storage	Max HDD ( 4T )/SSD x 1 & SD card 256G x 1
Interfaces	RS232 x 2 RS485 x 1 RJ45 x 1 USB x 1
Power Input	DC 9～36V
Power Output	12V@2.5A
Power Consumption	< 5W
Operating Temperature	-20～70℃ –
Operating Humidity	20%～80%
Dimensions	200 x 187 x 65mm ( D/W/H )
NWT	1.9kg
