$14.00
Technical Specifications

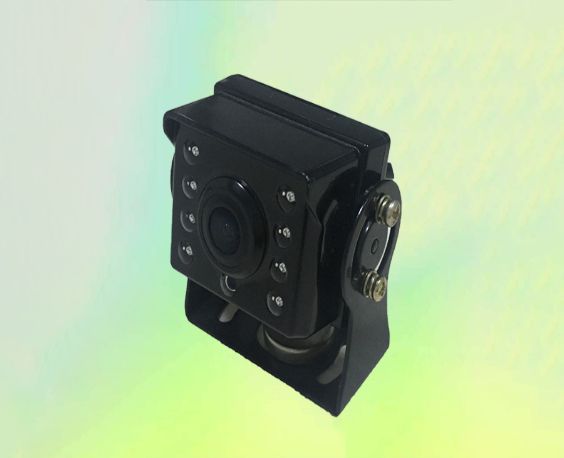

| Model No | XD – C2R3 ( side view outside the car ) |
| Imaging device | 1/2.9 1M Pixel CMOS |
| Pixels | 720P/1080P/25fps 720P/10800P/30fps |
| Video output | AHD 1.0Vp-p/75Ω |
| Minimum illumination | 0.01Lux with IR in operation |
| IR range | 3 – 6 m |
| SNR | >50dB |
| Lens | 2.8mm F2.0 |
| Lens angle | 950 H 600V |
| Electronic shutter | AUTO: 1/50sec 1/60sec |
| White balance | AUTO |
| Gamma correction | 0.45 |
| Image coloring | Color, Black and white when IR in operation |
| Mirror effect | Available |
| Interface | 4-pin air connector ( 1-VCC, 2-GND, 3,4-video ) |
| Cable length | 0.5m |
| Voltage | DC 9 – 16V |
| Current | 350mA@12V max |
| Temperature range | -300 ～ 850 |
| Moisture | ≤95% |
| IP code | IP67 ( waterproof adhesive sealing, SS screws ) |
Loading...
Vendor Information
- No ratings found yet!
-

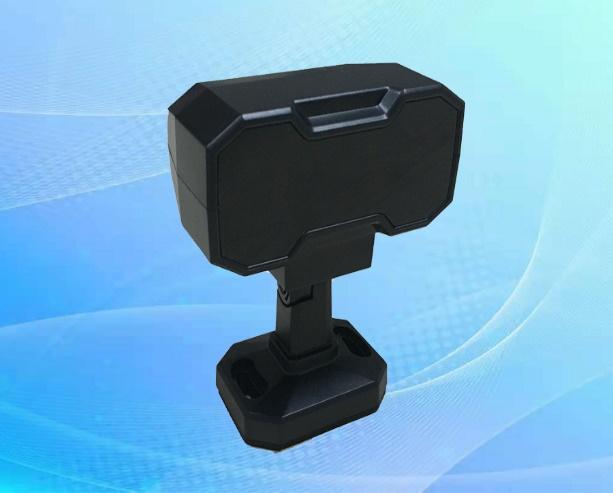

DMS Camera XD – C201Technical Specifications
Model No XD – C201 ( for car DMS system ) Imaging device 1/2.9 1M Pixel CMOS Pixels 720P/1080P/25fps 720P/1080P/30fps Video output AHD 1.0Vp-p/75Ω Minimum illumination 0.01Lux with IR in operation IR range 2m SNR >38dB Lens 6mm F2.0 Lens angle 520 H 290V Electronic shutter AUTO: 1/50sec 1/60sec White balance AUTO Gamma correction 0.45 Image coloring Black and white Mirror effect Available Interface 4-pin air connector Cable length 2m Voltage DC 9 – 16V Current 240mA@12V Temperature range -300C ～ 850C IP code IP54 $18.00 -

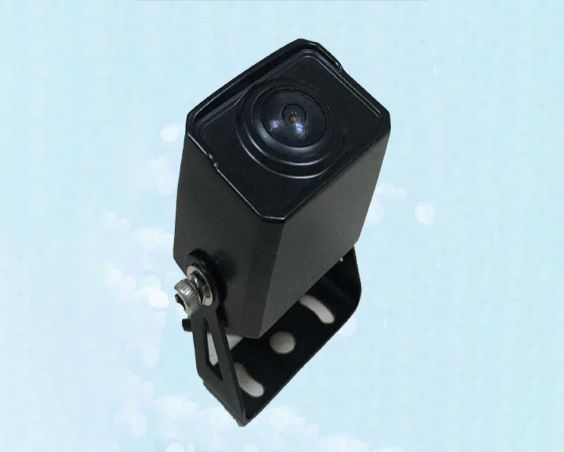

ADAS Camera XD – C301Model No XD – C301 ( for car ADAS system ) Imaging device 1/2.9 2M Pixel CMOS Pixels 720P/1080P/25fps 720P/1080P/30fps Video output AHD 1.0Vp-p/75Ω Minimum illumination 0.01Lux SNR >50dB Lens 6mm F2.0 Lens angle 600 H 300V Electronic shutter AUTO: 1/50sec 1/60sec White balance AUTO Gamma correction 0.45 Night vision effect Color pictures Interface 4-pin air connector Cable length 2m Voltage DC 9 – 16V Current 240mA@12V Temperature range -300 ～ 850 IP code IP54 $20.00 -
Taxi Dash Camera 2CH SD Model No FLDC09Features
- A smart dash camera for taxi, private cars, mini-bus, etc.
- Double AHD cameras facing forward and backward. Two more cameras may be connected if necessary.
- Real-time or scheduled recording mode for your option.
- DMS camera with night vision effect.
- 4G/ WiFi wireless transmission.
- GPS/ BDS positioning modules.
- With embedded speaker and microphone, VoIP for communications between the driver and the platform on the internet.
- An emergency button for use in case of emergency
- ADAS system: front vision detection, lane departure alert and pedestrian warning.
- DMS system that alerts the driver of signs of fatigue, drowsiness, etc.
- Face identification ( Face ID ) that triggers prompt alarms when detecting unauthorized driver’s face.
- Compliant with CMSV6 or Wialaon platform
- For tracking, surveillance and fleet management online when connected to the platform on either PC or cell phones.
$147.00 -

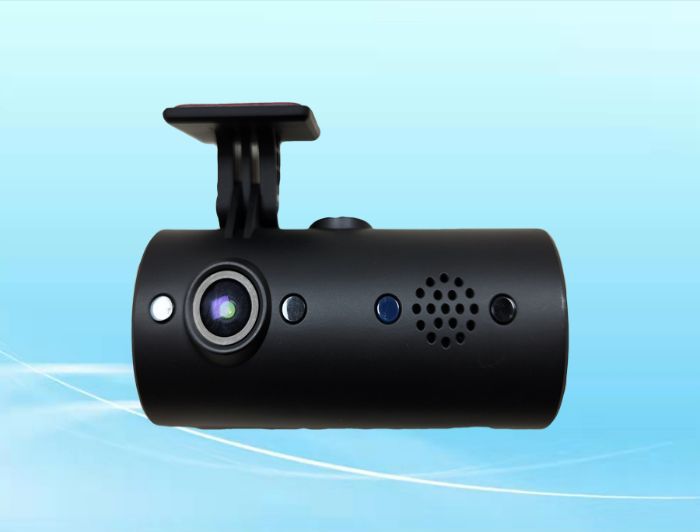

Dash Camera for TaxiTechnical Specifications
System Linux Front Camera 1080P@25fps 2.8mm 1200 horizontal Rear Camera 720P@25fps 2.0mm 1300 horizontal Video In 2 CH 1080P/720P Video Encoding H264 dual stream coding Candid Photography Yes Audio In 1 CH VoIP embedded Audio Encoding G.726 Audio Out 1 CH Interface T-Flash x 1 SIM card x 1 Positioning GPS + BD3 warm start≤1s cold start≤38s Accuracy 2.5m ( CPE ) Wireless Communication 4G, WiFi Storage T-Flash card 512G x 1 Power In 9 – 36V Temperature Range -20～70℃ ( operation ) Original price was: $119.00.$109.00Current price is: $109.00. -
Front & Rear View Dual Lens Car Camera XD-C3T2Technical Specifications
Model No XD – C3T2 ( front and rear view ) Imaging device 1/2.9 1M Pixel CMOS Pixels 720P/1080P/25fps 720P/1080P/30fps Video output AHD 1.0Vp-p/75Ω Minimum illumination Front view: 0.01Lux In-car: 0lux ( IR open ) In-car: 0Lux with IR in operation
IR range 3 – 8 m SNR >50dB Lens Front view: 2.8mm@F2.0 In-car: 1.9mm@F2.0
Lens angle Front view: 1100 H /800V In-car: 1500 H /1000V
Electronic shutter AUTO: 1/50sec 1/60sec White balance AUTO Gamma correction 0.45 Image coloring Color, Black and white while IR in operation Mirror effect Available Interface 4-pin air connector Cable length 0.5m Voltage DC 9 – 14V Current 300mA@12V Temperature range -200 ～ 800 Moisture ≤95% IP code IP54 Original price was: $35.00.$29.00Current price is: $29.00. -
Rear View Video Camera XD – C2B1Technical Specifications
Model No XD – C2B1 ( rear view for car reversing ) Imaging device 1/2.9 1M Pixel CMOS Pixels 720P/1080P/25fps 720P/1080P/30fps Video output AHD 1.0Vp-p/75Ω Minimum illumination 0.01Lux while IR in operation IR range 3 – 6 m SNR >50dB Lens 2.8mm F2.0 Lens angle 950 H 600V Electronic shutter AUTO: 1/50sec 1/60sec White balance AUTO Gamma correction 0.45 Image coloring Color, Black and white while IR in operation Mirror effect Available Interface 4-pin air connector Cable length 0.5m Voltage DC 9 – 16V Current 240mA@12V Temperature range -300 ～ 850 Moisture ≤95% IP code IP67 $15.00
Product Enquiry
Related products
-
In-car Security Camera MF – Z101Technical Specifications
Model No MF – Z101 ( Interior Car Surveillance ) Pixels 720P/1080P/25fps 720P/1080P/30fps Video output format AHD in PAL or NTSC standard Image sensor 1/2.9 GC2053 CMOS Minimum illumination 0.001Lux@( F1.2, AGC ON ) , OLUX with IR IR range 3 – 6m DNR 3D DNR SNR >38dB Sensitivity 6400mV/Lux. s Lens 2.8mm F2.0 CRA 120 Electronic shutter AUTO: 1/50sec 1/60sec Image coloring Color, Black and white while IR in operation Mirror effect Default normal mode, changed to mirror image mode via DVR settings Synchronization Internal Interface 4-pin air connector Cable length 0.5m Voltage DC 9 – 16V Temperature range -200 ～ 750 Moisture ≤90% IP code IP54 $12.00 -
Interior Car Camera with Double Lenses XD – C3T2Technical Specifications
Model No XD – C3T2 ( front and rear view ) Imaging device 1/2.9 1M Pixel CMOS Pixels 720P/1080P/25fps 720P/1080P/30fps Video output AHD 1.0Vp-p/75Ω Minimum illumination Front view: 0.01Lux Rear view: 0Lux with IR in operation
IR range 3 – 8 m SNR >50dB Lens Front view: 2.8mm@F2.0 Rear view: 1.9mm@F2.0
Lens angle Front view: 1100 H /800V Rear view: 1500 H /1000V
Electronic shutter AUTO: 1/50sec 1/60sec White balance AUTO Gamma correction 0.45 Image coloring Color, Black and white while IR in operation Mirror effect Available Interface 4-pin air connector Cable length 0.5m Voltage DC 9 – 14V Current 300mA@12V Temperature range -200 ～ 800 Moisture ≤95% IP code IP54 $32.00 -

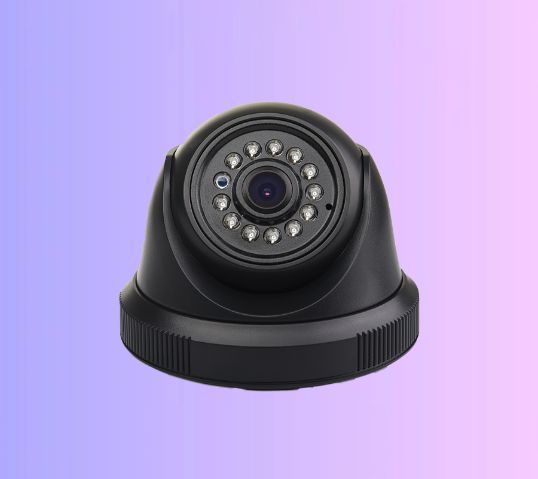

In-car Monitoring Video Camera XD – C214Technical Specifications
Model No XD – C214 ( in-car monitoring ) Imaging device 1/2.9 1M Pixel CMOS Pixels 720P/1080P/25fps 720P/1080P/30fps Video output AHD 1.0Vp-p/75Ω Minimum illumination 0.001Lux while IR in operation IR range 3 – 6 m SNR >50dB Lens 2.8mm F2.0 Lens angle 950 H 600V Electronic shutter AUTO: 1/50sec 1/60sec White balance AUTO Gamma correction 0.45 Image coloring Color, Black and white while IR in operation Mirror effect Available Interface 4-pin air connector Cable length 0.5m Voltage DC 9 – 16V Current 240mA@12V Temperature range -300 ～ 850 Moisture ≤95% IP code IP54 $12.00 -
Exterior Vehicle Camera with Fisheye Lens XD – C2F2Technical Specifications
Model No XD – C2F2 ( flexible installations ) Imaging device 1/2.9 1M Pixel CMOS Pixels 720P/1080P/25fps 720P/1080P/30fps Video output AHD 1.0Vp-p/75Ω Minimum illumination 0.01Lux with IR in operation IR range 3 – 6 m SNR >50dB Fisheye lens 1.8mm F2.0 Lens angle 1600 H 1150V Electronic shutter AUTO: 1/50sec 1/60sec White balance AUTO Gamma correction 0.45 Image coloring Color, Black and white while IR in operation Mirror effect Available Interface 4-pin air connector Cable length 0.5m Voltage DC 9 – 16V Current 240mA@12V Temperature range -300 ～ 850 Moisture ≤95% IP code IP67 $18.00
