Name: Mobile DVR 4/8 CH HDD with ADAS &amp; DMS Model No B4FH10-AI-1
SKU: 8645
Availability: InStock

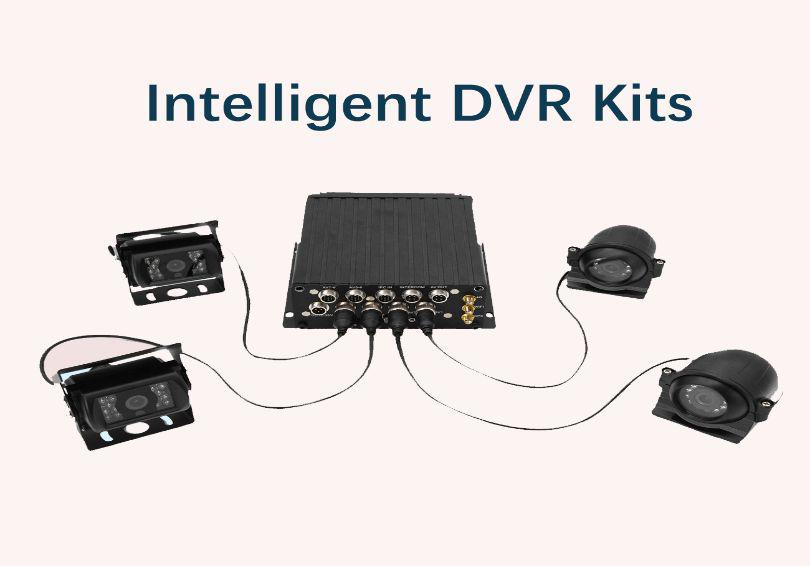

Mobile DVR 4/8 CH HDD with ADAS & DMS Model No B4FH10-AI-1

Mobile DVR 4/8 CH HDD with ADAS & DMS Model No B4FH10-AI-1 - Image 2

Mobile DVR 4/8 CH HDD with ADAS & DMS Model No B4FH10-AI-1 - Image 3

$205.00

Features

AI based security surveillance mobile DVR for road vehicles
4/8 High definition ( AHD ) video channels
Recording modes: continuous, scheduled and alarm triggered
HDD storage max 2T
Intercom system for communication between the DVR and the platform
Watchdog timer to reset the system when detecting hardware faults or software malfunctions
Delayed shutdown of video recording for up to 24 hours
Scheduled video recording supported
UPS technology to protect both hardware and data files from damage in case of unexpected power failure
Aviation connector adopted
GPS/BDS positioning module, RJ45, 4G and 3-axis G-Sensor available for your option
Recommended for trucks, buses, vans and other land vehicles

Category: MOBILE DVR Tag: Car DVR

Description

AI Functions

Advanced Driver Assistance System ( ADAS )

To decrease avoidable crashes and to minimize accidents, the embedded ADAS system send warnings or alerts when it identifies an impending collision in front of your vehicle or when pedestrians or motor vehicles are moving nearby beside your vehicle within a short distance as defined by the system.

The system alerts the driver when your vehicle deviates from the current travel lane without a lane change signal.

An occlusion alarm will be triggered when any of your car cameras is blocked in whole or in part.

Driver Monitoring System ( DMS )

The system aims to increase the driver’s attentiveness and alert him of signs of drowsiness ( yawning, blinking or closing eyes ) and distraction ( smoking, making calls ) while steering a vehicle on the way. An alarm will be signaled when the driver disappears from the camera vision. The DMS helps reduce accidents and improve driver’s safety.

Technical Specifications

System	Linux
Languages	Chinese, English, etc.
Login Safety	Password for login by both user and administrator
Video Input	4/8 CH AHD 1080P, 720P, D1, HD1, CIF
Image Compression	H.264/H.265
Video Output	1CH VGA 1CH air connector interface
Audio	4 CH input 4 CH output
Image Display	1 – 4 images
OSD Overlay	Channel, time, record, resolution, VIN, GPS, etc.
Wireless Communication	4G, WiFi ( optional )
Satellite Positioning	GPS/BDS ( optional )
Storage	SD cards ( max 512G ) x 1 HDD ( 2T )/SSDx1
G-Sensor ( optional )	3-axis accelerometer
I/O Alarm	4 CH input
Interfaces	USB 2.0 x 1 1 x RS232 1xRS485
Power Input	DC 10～32V
Power Consumption	≤10W
Operating Temperature	-20～70℃ –
Operating Humidity	20%～80%
Dimensions	161 x 159 x 63mm ( D/W/H )
